controlled atmosphere furnace

Place of Origin : CHina Shanghai

Brand Name : OEM

Certification : ISO

Model Number : RJX / RMQ

MOQ : 1 Unit

Price : negotiations

Packaging Details : Free fumigation wooden cases

Delivery Time : 30 days

Payment Terms : T/T or LC

Supply Ability : 1-10 unit / year

Contact Now

General and protection of box-type resistance furnace

Mainly for industrial use of box-type resistance furnace RJX Ordinary box-type resistance furnace series RMQ Series pass-shielding gas sealed box-type resistance furnace.

RJX Series of box-type resistance furnace generally belong to the batch-type furnace, divided into low-temperature 600~700 ℃ , Medium temperature 700~1200 ℃ , High temperature greater than 1200 ℃ Three categories, a configuration of low temperature high temperature stirring fan, to enhance convective heat transfer in order to achieve uniformity of temperature.

Model	Power /kw	Voltage /V	Phase number	Maximum operating Temperature / ℃	The size of single fireplaces ( mm ) Long X width x height
RJX-15-9	15	380	2	950	650 ×300×250
RJX-30-9	30	380	3	950	950 ×450×350
RJX-45-9	45	380	3	950	1200 ×600×400
RJX-60-9	60	380	3	950	1500 ×750×450
RJX-75-9	75	380	3	950	1800 ×900×550
RJX-20-12	20	380	2	1200	650 ×300×250
RJX-45-12	45	380	3	1200	950 ×450×350
RJX-65-12	65	380	3	1200	1200 ×600×400
RJX-90-12	90	380	3	1200	1500 ×750×450
RJX-115-9	115	380	3	1200	1800 ×900×550
RJX-14-13	14	380	3	1350	520 ×220×220
RJX-25-13	25	380	3	1350	600 ×280×300
RJX-37-13	37	380	3	1350	810 ×550×370
RJX-35-16	35	380	2	1650	500 ×300×300

controlled atmosphere furnace

RMQ Series pass nitrogen, hydrogen and hydrogen-nitrogen mixed gas, and other inert atmosphere box type furnace series, the series of specifications are as follows:

Model	Power /kw	Voltage /V	Phase number	Maximum operating Temperature / ℃	The size of single fireplaces ( mm ) Long X width x height
RMQ-30-9	30	380	3	950	750 ×450×300
RMQ-45-9	45	380	3	950	800 ×500×420
RMQ-75-9	75	380	3	950	900 ×600×450
RMQ-60-16	60	380	3	1600	650 ×500×450

controlled atmosphere furnace

More than two series of types in addition to the specifications listed in the table, can also be customized according to customer's request customer demand profile of a particular size.

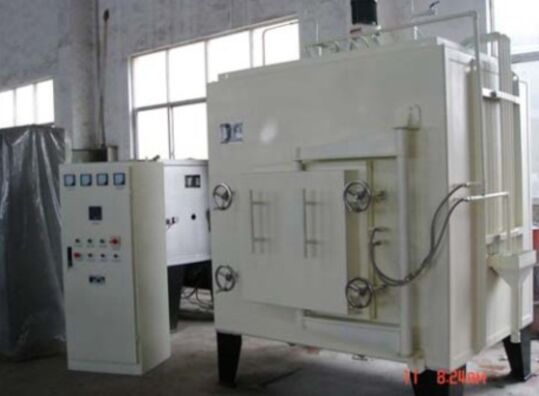

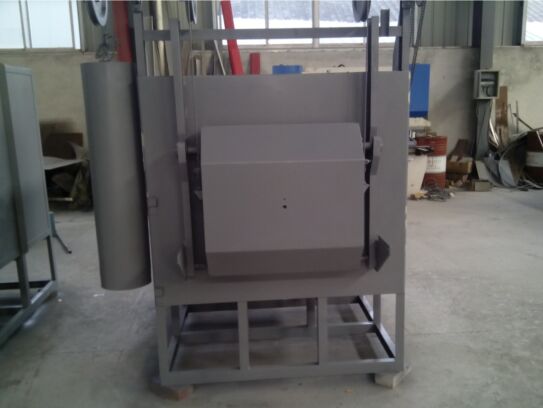

controlled atmosphere furnace Images
